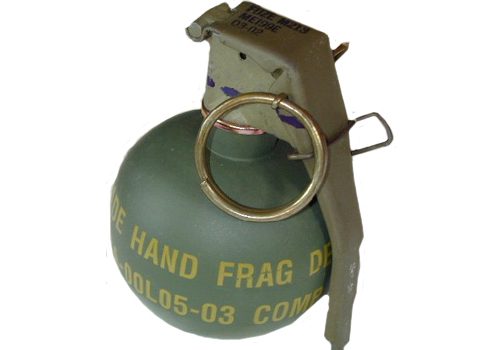

Hand Grenade High Explosive
Fragmentation C13/M67
The M67 hand grenade uses a time fuze and is thrown by hand. The steel body (63.5 mm dia.) breaks up on detonation and generate a large number of lethal fragments. The grenade is activated by a conventional striker using an M42 percussion primer. The M213 pyrotechnic delay fuze provides a 4 to 5 seconds delay. The grenade weighs approximately 390 gr and the average throwing range is 40 meters. Its lethal radius is approximately 15 meters.
![](https://www.gd-otscanada.com/wp-content/uploads/DPC_hand_grenades_image.jpg)
Soldier prepares to throw M67 Fragmentation Grenade (left). M67 Fragmentation Grenade Explosion (right).
